Welded Mesh Fence 2D868 Plus Maximum Security
Why Choose Our Welded Mesh Fence 2D868-plus?

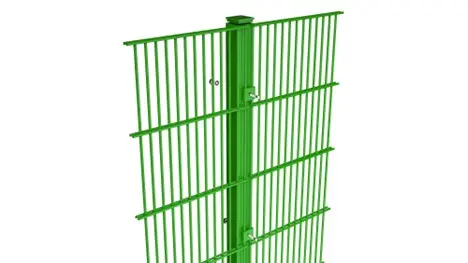

Introducing the HiWeld 2D868 Plus, a top-tier double wire mesh fencing system known for its robustness and impenetrability. This fencing is designed to provide the highest level of security for areas where protection is paramount. Its dense mesh pattern and high durability make it the preferred choice for securing sensitive sites.
Key Features of HiWeld 2D868 Plus
|
Mesh Size |
25mm x 200mm |
| Wire Diameter |
Twin 8mm diameter horizontal wires on either side of 6mm diameter vertical wires |
Material |
Galvanized steel |
Post Dimensions | 40 x 40mm, 60 x 60mm, or 50 x 100mm depending on fence height |
Standard Panel Width | 2500 mm |
Panel Heights | 950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm) |
Tensile Strength | Min. 500 N/mm² |
Welding Strength | 50% of total tensile strength in accordance with EN 10223-7 |
Panel WidthS | 2500 mm |
Post Dimensions | 50 x 50 mm (up to 1.5m high) 60 x 60 mm SHS (up to 3000 mm) 50 x 100 mm RHS (up to 6000 mm) |
Post Centers | 2510 mm |
Key Components of HiWeld 2D868Plus
HiWeld 2D868plus As one of the strongest and most impenetrable rigid wire mesh panels fencing system on the market, the Hiweld 2D868 PLUS double wire mesh panel system is a hugely popular perimeter choice when high security is necessary. it has three major elements; Post, panel, Fitting.

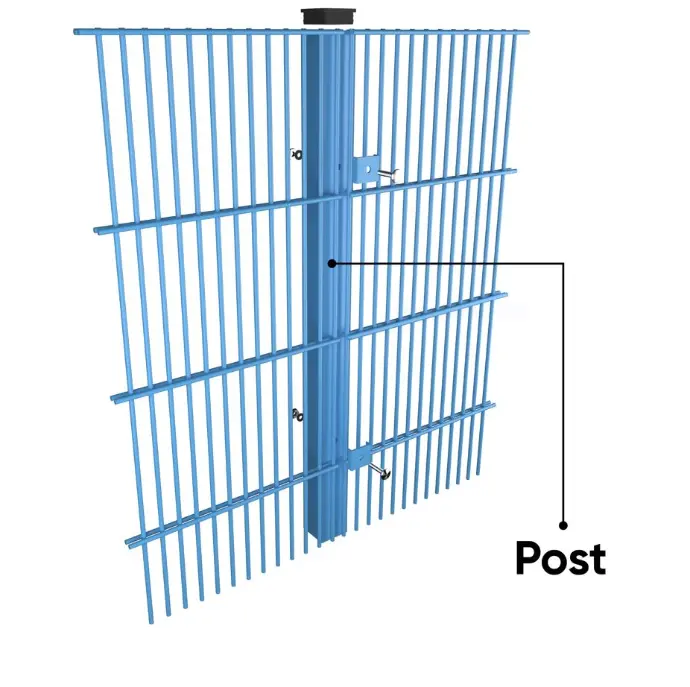

Posts
HiWeld 2D868 plusTM posts that are 50x50mm, 60 x 60 mm & 50 x 100mm in measurement which gives them the strength to withhold pressure and force exerted on it. These steel posts determine the length of the fence and can either be;
- Over-length set in the ground
- Base plated to bolt down onto the concrete
- Cranked to suit wall mounting.
- Covered with a plastic cap on the top
- Extension With 45digree cranked on the top
- Extension With double (Y) cranked on the top

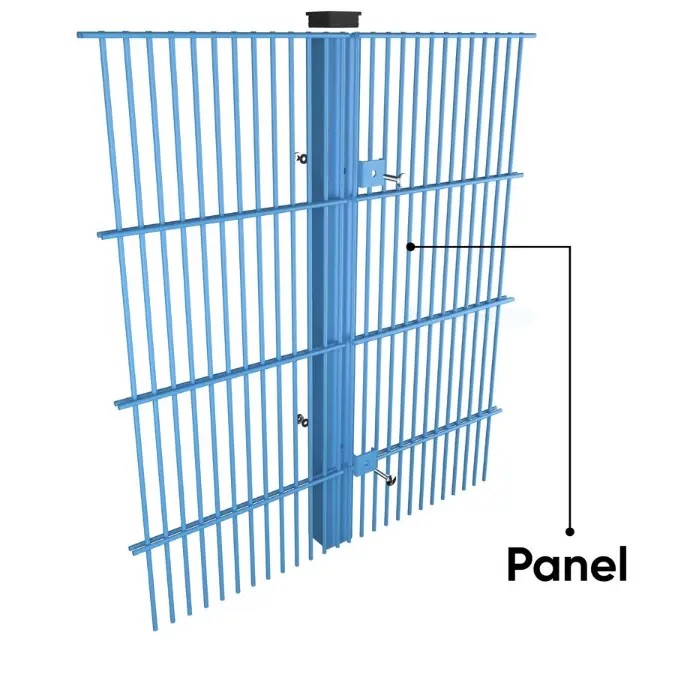

Panels:
The mesh between the posts is known as a panel. The Mesh panels have a flat profile with double horizontal wires 8mm dia , and 6mm vertical wire welded at intersections spaced just 25mm apart, double wire fencing is extremely dense and very difficult to cut through. The standard panel height is 950, 1450, and 1950mm high and can be stacked above one another to deliver up to 6000 mm high fence.We have the following options to prevent people from climbing over the fence;
- 30mm projecting spikes
- 3 or 6 numbers of barbed wires
- 3 or 6 numbers of barbed wire with concertina role.
Tensile strength of the horizontal and vertical wires: Min. 500 N/mm² The minimum average welding strength is 50% of the total tensile strength of the wire in accordance with EN 10223-7.

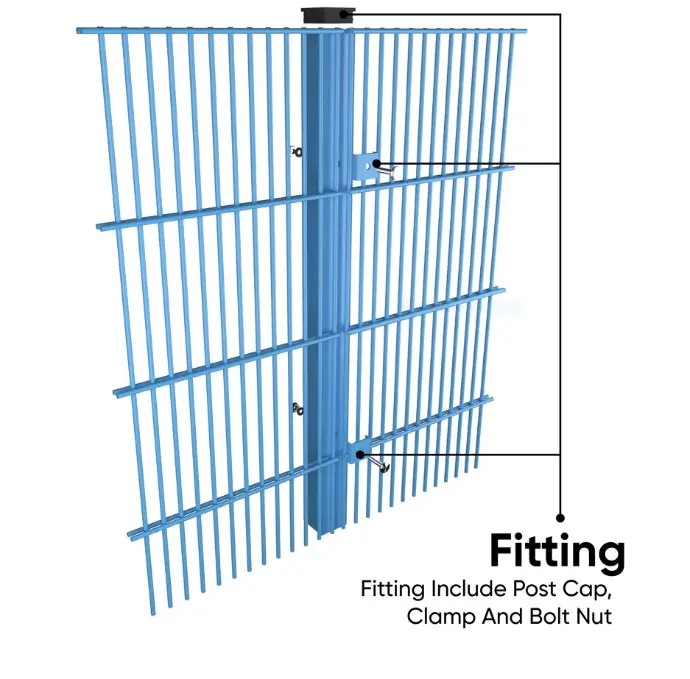

Fittings
Rigid 40x50mm metal clips or 50x5mm flat bar along the full length of the post being proposed to hold the welded steel mesh panels to the post. It shall be bolted at every 400mm by using round head 8mm dia bolts.
Gates
Automatic and manual operated gate matching the fencing with multiple single or double leaf gate options
Finishing Options
Hot-Dip Galvanizing
All steel components shall be hot-dip galvanized in accordance with BS EN ISO 1461 to ensure superior corrosion protection and extended service life.
Powder Coating
For enhanced durability and aesthetic finish, components shall comply with BS EN 13438, involving hot-dip galvanizing followed by a high-quality powder coating process.
Marine-Grade Protection
For installations within 500 meters of saltwater or estuaries, a specialized marine-grade coating system shall be applied to provide robust resistance against salt-induced corrosion.
Standard Colors
Black |
RAL 9005 |
|
Green |
RAL 6005
|
|
Custom |
custom colors are available upon request.
|

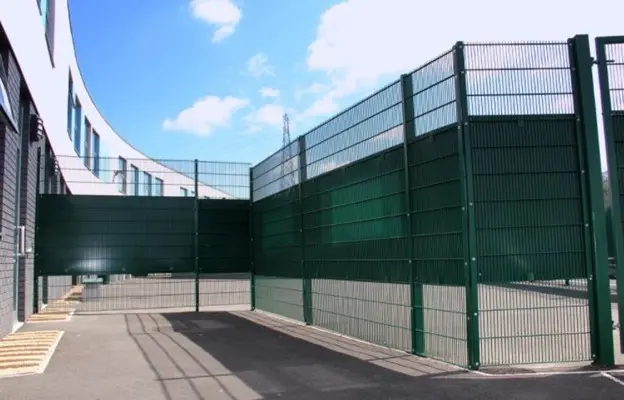

Applications of HiWeld 2D868 Plus
Installation and Support
At HITECH, we engage with you through every phase of your project. Not only do we design and construct the ideal V Mesh fencing tailored to your needs, but we also handle the installation. Setting up fencing can be challenging, particularly for those new to it. That’s where our team of fencing experts comes in; they're ready to assist, advise, and manage the tough aspects, ensuring you can quickly enjoy the benefits of secure fencing.
